PQ型磁芯
- 质量稳定：实行全过程质量监控，一丝不苟，检测！
- 合理的价格：有效的内部成本控制，减少开支，为客户服务！
- 快速交货：完善的生产线，充足的库存，缩短交货时间！
- 电话：15955032233
- 传真：0539-6015306
- 邮箱：351856373@qq.com、sales@yfcore.com
介绍

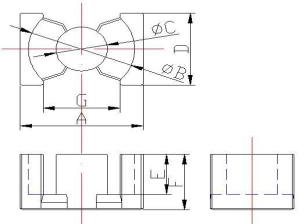

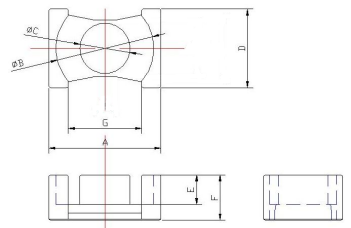

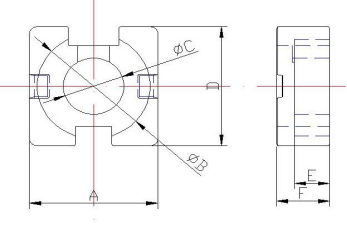

| 型号 | 形状 | 毛重 | 尺寸(mm) | ||||||
| A | Bmin | C | D | E | F | Gmin | |||
| PQ20/16 | Ⅰ | 15 | 20.5±0.4 | 18.0±0.4 | 8.8±0.2 | 14.0±0.4 | 5.2±0.2 | 8.1±0.1 | 12.0 |
| PQ20/20 | Ⅰ | 17 | 20.5±0.4 | 18.0±0.4 | 8.8±0.2 | 14.0±0.4 | 7.2±0.2 | 10.1±0.1 | 12.0 |
| PQ26/20 | Ⅰ | 34 | 26.5±0.5 | 22.5±0.45 | 12.0±0.2 | 19.0±0.45 | 5.7±0.2 | 10.1±0.1 | 15.5 |
| PQ26/25 | Ⅰ | 40 | 26.5±0.5 | 22.5±0.45 | 12.0±0.2 | 19.0±0.45 | 8.0±0.2 | 12.4±0.2 | 15.5 |
| PQ27/20 | Ⅰ | 34.6 | 27.3±0.5 | 22.5min | 12.0±0.2 | 19.0±0.45 | 5.8±0.25 | 10.1±0.25 | 16.0 |
| PQ27/25 | Ⅰ | 41 | 27.3±0.5 | 22.5min | 12.0±0.2 | 19.0±0.45 | 8.2±0.25 | 12.5±0.25 | 16.0 |
| PQ27.5A/20 | Ⅰ | 35.6 | 27.5±0.5 | 22.3min | 12.0±0.2 | 19.0±0.45 | 5.8±0.25 | 10.1±0.25 | 16.0 |
| PQ27.5A/25 | Ⅰ | 41.6 | 27.5±0.5 | 22.3min | 12.0±0.2 | 19.0±0.45 | 8.2±0.25 | 12.5±0.2 | 16.0 |
| PQ27.5B/20 | Ⅰ | 34.6 | 27.5±0.5 | 22.8min | 12.0±0.2 | 19.0±0.45 | 5.8±0.25 | 10.1±0.25 | 16.0 |
| PQ27.5B/25 | Ⅰ | 40.6 | 27.5±0.5 | 22.8min | 12.0±0.2 | 19.0±0.45 | 8.2±0.25 | 12.5±0.2 | 16.0 |
| PQ28.5/25 | Ⅰ | 41 | 28.5±0.5 | 23.8min | 12.0±0.3 | 19.0±0.45 | 8.2±0.25 | 12.5±0.25 | 17.0 |
| PQ32/20 | Ⅰ | 45 | 32.0±0.6 | 27.5±0.5 | 13.4±0.3 | 22.0±0.5 | 5.8±0.25 | 10.1±0.25 | 19.0 |
| PQ32/25 | Ⅰ | 52 | 32.0±0.6 | 27.5±0.5 | 13.4±0.3 | 22.0±0.5 | 8.3±0.25 | 12.5±0.25 | 19.0 |
| PQ32/30 | Ⅰ | 62 | 32.0±0.6 | 27.5±0.5 | 13.4±0.3 | 22.0±0.5 | 10.7±0.25 | 15.0±0.25 | 19.0 |
| PQ32/35 | Ⅰ | 67 | 32.0±0.6 | 27.5±0.5 | 13.4±0.3 | 22.0±0.5 | 12.6±0.3 | 16.9±0.25 | 19.0 |
| PQ32.5/20 | Ⅰ | 46 | 32.5±0.6 | 28.0±0.5 | 13.4±0.3 | 22.0±0.5 | 5.8±0.25 | 10.1±0.25 | 19.5 |
| PQ32.5/25 | Ⅰ | 53 | 32.5±0.6 | 28.0±0.5 | 13.4±0.3 | 22.0±0.5 | 8.3±0.25 | 12.5±0.25 | 19.5 |
| PQ32.5/30 | Ⅰ | 63 | 32.5±0.6 | 28.0±0.5 | 13.4±0.3 | 22.0±0.5 | 10.7±0.25 | 15.0±0.25 | 19.5 |
| PQ33/30 | Ⅰ | 61.6 | 33.0±0.6 | 28.5±0.5 | 13.4±0.3 | 22.0±0.5 | 10.7±0.25 | 15.0±0.25 | 20.0 |
| PQ35/35 | Ⅰ | 77.6 | 35.1±0.7 | 32.0±0.5 | 14.4±0.3 | 26.0±0.5 | 12.5±0.25 | 17.5±0.25 | 23.5 |
| PQ40/40 | Ⅰ | 101 | 40.5±0.9 | 37.0±0.6 | 14.9±0.3 | 28.0±0.6 | 14.7±0.25 | 19.9±0.25 | 28.0 |
| PQ50/50 | Ⅰ | 216 | 50.0±0.9 | 44.0±0.7 | 20.0±0.3 | 32.0±0.6 | 18.0±0.25 | 25.0±0.25 | 31.5 |
| PQM27/20 | Ⅱ | 31 | 26.8±0.4 | 23.0MIN | 11.8±0.2 | 18.9±0.3 | 6.1±0.25 | 9.5±0.25 | 17.0 |
| PQM27/25 | Ⅱ | 37.2 | 26.8±0.4 | 23.0MIN | 11.8±0.2 | 18.9±0.3 | 9.1±0.25 | 12.5±0.25 | 17.0 |
| PQM32/20 | Ⅱ | 44 | 32.0±0.5 | 28.0MIN | 13.6±0.25 | 22.0±0.4 | 6.5±0.25 | 10.0±0.25 | 20.8 |
| PQM32/25 | Ⅱ | 56 | 32.0±0.5 | 28.0MIN | 13.6±0.25 | 22.0±0.4 | 8.8±0.25 | 12.3±0.25 | 20.8 |
| PQM32/30 | Ⅱ | 61 | 32.0±0.5 | 28.0MIN | 13.6±0.25 | 22.0±0.4 | 11.2±0.25 | 14.7±0.25 | 20.8 |
| PQM32.8/22 | Ⅱ | 51 | 32.8±0.5 | 27.4MIN | 13.6±0.25 | 22.0±0.4 | 6.5±0.25 | 11.0±0.25 | 21.0 |
| PQM38 | Ⅱ | 32.8 | 38.0±0.8 | 32.0min | 14.2±0.3 | 21.2±0.5 | 3.5±0.3 | 6.5±0.3 | 26.7 |
| CQ28/20 | Ⅲ | 56 | 28.0±0.4 | 24.6±0.4 | 13.25±0.25 | 28.0±0.4 | 6.7±0.25 | 10.2±0.25 | 7.6 |
| 型号 | 有效参数 | AL±25%(nH/N^2) | 净重（g） | |||||||
| C1mm | -1 | Lemm | Aemm | 2 | Vemm | 3 | PC40 | |||
| PQ20/16 | 0.605 | 37.4 | 62.0 | 2310 | 3300 | 13 | ||||
| PQ20/20 | 0.738 | 45.4 | 62.0 | 2790 | 3100 | 15 | ||||
| PQ26/20 | 0.391 | 46.3 | 119.0 | 5490 | 6100 | 31 | ||||
| PQ26/25 | 0.472 | 55.5 | 118.0 | 6530 | 5200 | 36 | ||||
| PQ27/20 | 0.411 | 47.6 | 117.0 | 5490 | 6100 | 31 | ||||
| PQ27/25 | 0.481 | 56.8 | 116.0 | 6530 | 5200 | 36.5 | ||||
| PQ27.5A/20 | 0.409 | 48.5 | 118.0 | 5720 | 6100 | 32 | ||||
| PQ27.5A/25 | 0.491 | 57.6 | 117.0 | 6750 | 5200 | 37.5 | ||||
| PQ27.5B/20 | 0.414 | 48.5 | 117.0 | 5670 | 6100 | 31 | ||||
| PQ27.5B/25 | 0.496 | 57.6 | 116.0 | 6680 | 5200 | 36.5 | ||||
| PQ28.5B/25 | 0.501 | 58.3 | 116.0 | 6760 | 4800 | 37 | ||||
| PQ32/20 | 0.326 | 55.5 | 161.0 | 9420 | 6000 | 42 | ||||
| PQ32/25 | 0.376 | 60.6 | 161.0 | 9760 | 5500 | 48 | ||||
| PQ32/30 | 0.464 | 78.2 | 161.0 | 12600 | 5150 | 55 | ||||
| PQ32/35 | 0.546 | 85.2 | 161.0 | 13300 | 3950 | 66 | ||||
| PQ32.5/20 | 0.326 | 55.5 | 161.0 | 9420 | 6000 | 42 | ||||
| PQ32.5/25 | 0.376 | 60.6 | 161.0 | 9760 | 5500 | 48 | ||||
| PQ32/30 | 0.464 | 78.2 | 161.0 | 12600 | 5150 | 55 | ||||
| PQ33/30 | 0.471 | 79.8 | 161.0 | 12850 | 5000 | 55.8 | ||||
| PQ35/35 | 0.448 | 87.9 | 196.0 | 17300 | 4860 | 73 | ||||
| PQ40/40 | 0.508 | 102 | 201.0 | 20500 | 4300 | 95 | ||||
| PQ50/50 | 0.346 | 113 | 328.0 | 37200 | 6720 | 195 | ||||
| PQM27/20 | 0.43 | 45.6 | 105.0 | 4800 | 5000 | 28 | ||||
| PQM27/25 | 0.545 | 57.4 | 105.0 | 6050 | 4800 | 32.5 | ||||
| PQM32/20 | 0.392 | 55.9 | 145.7 | 7990 | 5500 | 40 | ||||
| PQM32/25 | 0.45 | 65.9 | 145.7 | 9596 | 5000 | 50.5 | ||||
| PQM32/30 | 0.562 | 76.7 | 145.7 | 11200 | 4500 | 55 | ||||
| PQM32.8/22 | 0.403 | 60.3 | 150.2 | 9060 | 5500 | 46 | ||||
| PQM38 | 0.378 | 43.6 | 118.0 | 5140.0 | 5800 | 30 | ||||
| CQ28/20 | 0.312 | 46.56 | 149.2 | 6948.0 | 7000 | 48.5 | ||||
